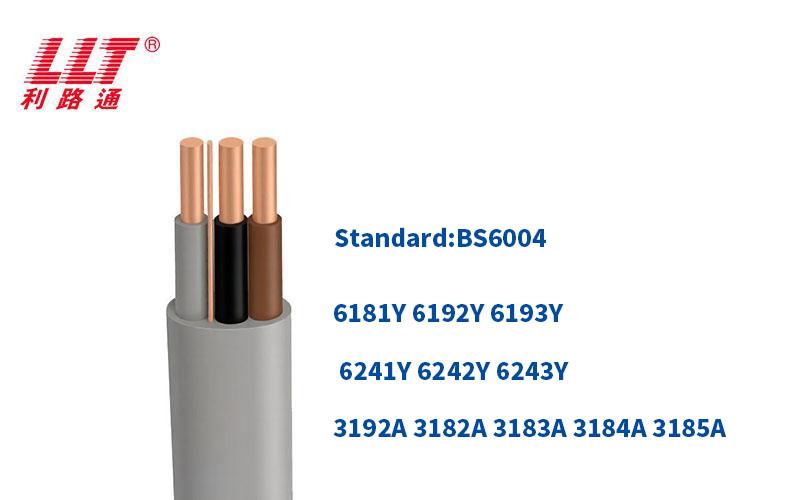

BS6004 Cable

Essential information

Brand: LLT
Place of origin: Shenzhen, China
Specification: 100M / 500m per roll
Packaging method: roll / wooden shaft / carton / pallet
Place of shipment: Shenzhen
Mode of transportation: Sea / land / air
Payment method:T / T, L / C, D / P
Starting quantity: 5000m
Daily production: 1000000m
Other services:OEM/ODM

Product overview of Fixed wiring cable：

Suitable for internal and external wiring of electrical appliances, instruments, power equipment, and automation devices in construction sites, installed in cable tunnels, cable trays, pallets, and bridges, or embedded in wall pipelines.

Standard:BS6004

6181Y 6192Y 6193Y
6241Y 6242Y 6243Y
3192A 3182A 3183A 3184A 3185A

CONSTRUCTION of Fixed wiring cable

conductor	Class 1 and 2 conductors
insulation	PVC
color	grey
rated voltage	300/500V
rated temperature	70℃

STANDARDS of Fixed wiring cable

✮BS 6004
✮EN 50525
✮EN 50575
✮ CPR ECa+UKCA,EN60332-1-2

CHARACTERISTICS of Fixed wiring cable

Strictly comply with electrical safety standards

Used for permanent electrical installation in buildings or fixed interiors

Outer sheath comes in a choice of:

Outer sheath color:

GreyWhiteOrangeBlack

E-Bare Earth conductor:

2 core

BrownBlue

3 core

BrownBlackBLack

BlueBrownBlackGreyBlack

Product Application of Power Cable

It is suitable for power connection of various household appliances, mobile appliances, various instruments and power lighting. It can be used in Germany, France, the Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Spain, Sweden and other EU countries.

Packaging information

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.

factory information

Super production capacity-more than 100 sets of automated production equipment, 24-hour production system, daily production capacity of 1,000,000 meters of cables
Strict quality inspection procedures-material inspection before production, index inspection during production, general quality inspection after production, packaging inspection
Complete certificate guarantee-IS09001 certification, IS014001 certification, CCC certification, CE certification, UL certification, LPCB certification, VDE certification, etc., so you can purchase with confidence
Efficient packaging and transportation-machineized packaging, fast and clean. Port city, direct air and sea transportation, fast delivery
7*24 hours after-sales service-professionals provide you with services and consultations around the clock
We can also provide OEM and ODM services

No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 70℃ （MΩ·KM）
			Min.	Max.	BC	TC
2×0.5	0.5	0.6	4.6	5.9	39	40.1	0.011
			3.0×4.9	3.7×5.9
2×0.75	0.5	0.6	4.9	6.3	26	26.7	0.01
			3.2×5.2	3.8×6.3
3×0.5	0.5	0.6	4.9	6.3	39	40.1	0.011
3×0.75	0.5	0.6	5.2	6.7	26	26.7	0.01

No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Approx overall diameter Approx overall diameter （mm）		Max. Conductor Resistance at 20℃ （Ω/KM）		Min. Insulation Resistance at 70℃ （MΩ·KM）
No.of cores×Nominal cross section (mm2)	Nominal thickness of insulation （mm）	Nominal thickness of sheath （mm）	Min.	Max.	BC	TC	Min. Insulation Resistance at 70℃ （MΩ·KM）
2×0.75	0.6	0.8	5.7	7.2	26	26.7	0.011
2×1.0	0.6	0.8	5.9	7.5	19.5	20	0.01
2×1.5	0.7	0.8	6.8	8.6	13.3	13.7	0.01
2×2.5	0.8	1	8.4	10.6	7.98	8.21	0.0095
3×0.75	0.6	0.8	6	7.6	26	26.7	0.011
3×1.0	0.6	0.8	6.3	8	19.5	20	0.01
3×1.5	0.7	0.9	7.4	9.4	13.3	13.7	0.01
3×2.5	0.8	1.1	9.2	11.4	7.98	8.21	0.0095
4×0.75	0.6	0.8	6.6	8.3	26	26.7	0.011
4×1.0	0.6	0.9	7.1	9	19.5	20	0.01
4×1.5	0.7	1	8.4	10.5	13.3	13.7	0.01
4×2.5	0.8	1.1	10.1	12.5	7.98	8.21	0.0095
5×0.75	0.6	0.9	7.4	9.3	26	26.7	0.011
5×1.0	0.6	0.9	7.8	9.8	19.5	20	0.01
5×1.5	0.7	1.1	9.3	11.6	13.3	13.7	0.01
5×2.5	0.8	1.2	11.2	13.9	7.98	8.21	0.0095
